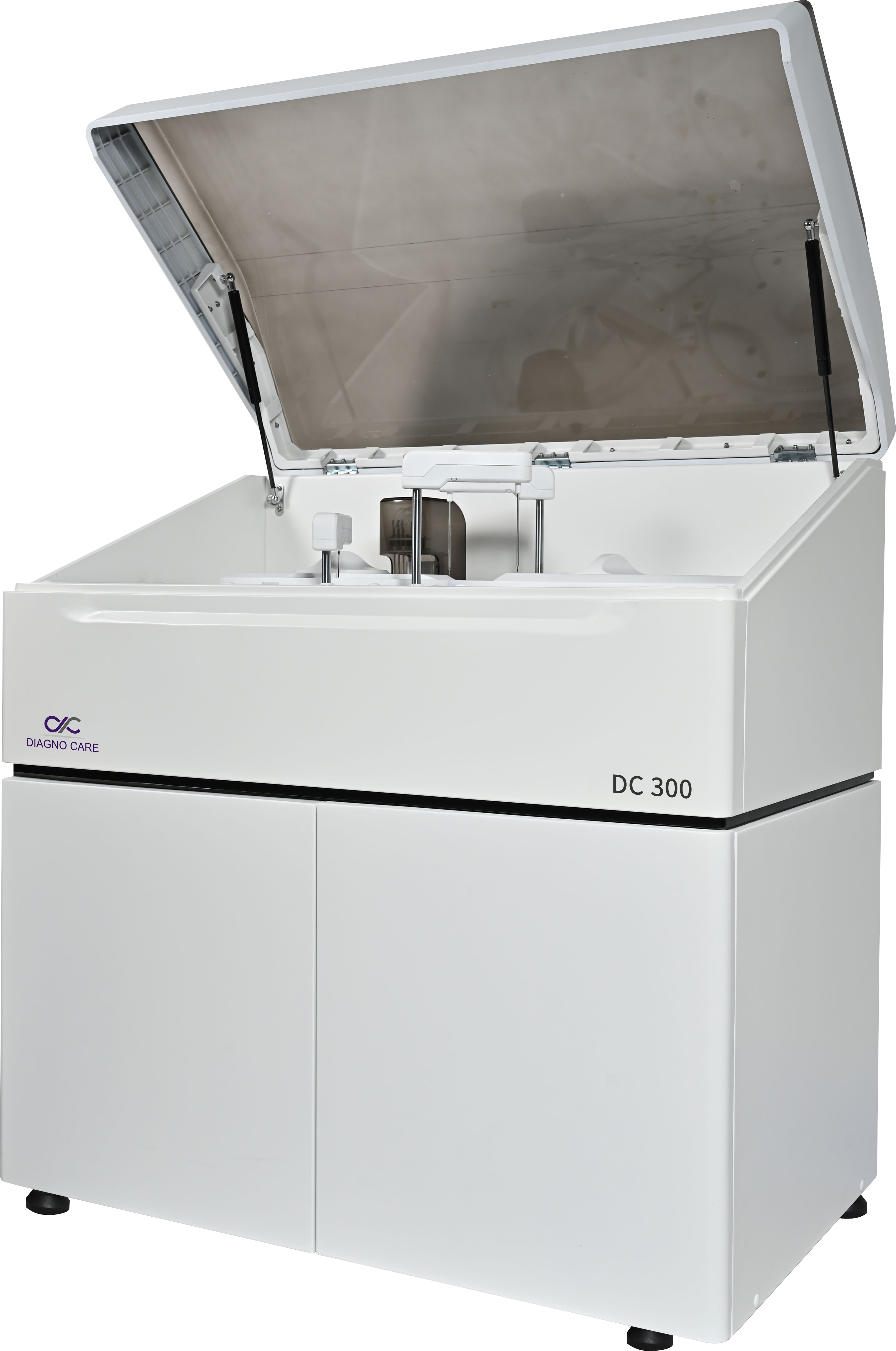

Fully Automatic Clinical Chemistry Analyzer
DC 300 |
Fully Automatic Clinical Chemistry Analyzer |
| Highly-Efficient and Convenient Test |
| Constant test speed of 300 T/h |
| Emergency samples in test priority at any time |
| LIS bi-directional connectivity |
| Automatic test report printing |
| Multifunctional and Precise Sample Probe |
| Highly-polished probe |
| Automatic inside and outside probe washing, reducing cross contamination |
| Highly sensitive liquid level detection sensor |
| Actively monitoring reagent volume |
| Protection of probe collision |
| Auto adjustment of sampling depth of sample probe |
| Sample and Reagent Unit |
| 45 sample positions |
| 90 reagent positions |
| Built-in refrigeration system, continual 24-hour on-board cooling |
| Built-in barcode reader for reagents and samples (optional item) |
| Reaction Unit |
| 120 cuvettes, can be replaced separately |
| The cuvettes are made of new-type non-crystalline optical plastic with better light transmittance |
| Minimum reaction volume: 150 μL |
| Stable and precise temperature control (37.0 ± 0.2°C) |
| 5-step cuvette Wash Station, thorough cleaning |
| Stirring Unit |
| Independent stirring paddle |
| lmported Teflon coating technology |
| Effectively preventing cross contamination |
| Advanced Operation System |
| lntuitive user-friendly interface, easy to learn and use |
| Auto sample dilution |
| Auto stopping and warning when reagents or samples run out |
| Calibration with linear or non-linear curves. Multi-point calibration |
| Automatically detecting cuvettes status and screening flawed cuvettes |
| Test Principles | Turbidimetry, Colorimetry |
| Test Methods | Rate, End point, Fixed – Time Method |
| Test Speed | Constant Speed of 300 T/H |
| Sample Types | Blood, Urine, Hydrothorax, Cerebrospinal fluid |
| Sample Volume | 2.0 µL – 35.0 µL (Stepped volume 0.5 µL) |
| Sample Positions | 45 Sample positions, 2 Emergency sample positions |
| Reagent Volume | 20 µL – 350 µL ( Stepped volume 1 µL) |
| Reagent Positions | 90 Reagent positions, Refrigeration temperature (6°C ~12°C) |
| Cuvettes | 120 cuvettes (6 x 6 mm), can be replaced separately |
| Reaction Volume | 150.0 – 450.0 µL |
| Reaction Temperature | 37.0 ± 0.1°C (constant temperature) |
| Light Source | Halogen lamp (20W), over 2000 h lifetime |
| Optical Splitter | Optical grating |
| Detector | Photodiode array |
| Wavelength | 340 ~ 800 nm, 13 wavelengths |
| Water Consumption | Less than 20 L purified water per hour |
| Dimensions | Floor – standing : 1060 mm x 660 mm x 1230 mm |
| Benchtop : 1060 mm x 660 mm x 540 mm | |
| Weight | Floor – standing : 140 kg |
| Benchtop : 85 kg |
